Driven by the global energy transformation and the goal of "double carbon", hydrogen energy has become one of the most complementary areas of cooperation between China and South Korea. Since 2018, South Korea has made hydrogen energy a national core strategy. The number of hydrogen fuel cell vehicles accounts for 40.5% of the world's total, and it has deep technical accumulation in the fields of hydrogen production, storage and transportation, and fuel cell power generation. At the same time, China's hydrogen energy industry is developing at a high speed. As the only city in the central region that has been selected as a national hydrogen energy regional pilot, Wuhan is accelerating the construction of the whole industrial chain ecology from hydrogen production to application through strong policies such as construction subsidies and operation subsidies for hydrogen refueling stations.

01 AES Tech

AES Tech integrates the whole industrial chain of hydrogen energy in the region through the hydrogen production technology based on anhydrous ammonia and the prediction and control system based on artificial intelligence, aiming at building an infrastructure that can use hydrogen energy at a very competitive cost advantage.

main products

Core solution

product features

1. Using amino hydrogen supply system for on-site hydrogen production can save more than 13.2% of the cost.

2. On-site hydrogen production is realized through the amino hydrogen supply system to ensure the continuity of customers' business.

3. Combining innovative hardware with intelligent control solutions, a stable hydrogen extraction system is built.

02 AETHER CT

AETHER CT (Nanliang Pressure Equipment Technology (Shanghai) Co., Ltd.) was established in 2003, and is a super-large high-pressure transportation pressure vessel manufacturer. In 2017, it took the lead in completing the construction of MEGC factory, and obtained the production license of AQSIQ to realize the localization of MEGC products. With excellent product quality, the design scheme and sales strategy closer to China customers account for nearly 70% of the domestic market share. One of the first batch manufacturers of IMDG and ultra-high pressure large vessels in China, and a pioneer in the production of ultra-high pressure vessel materials in China.

main products

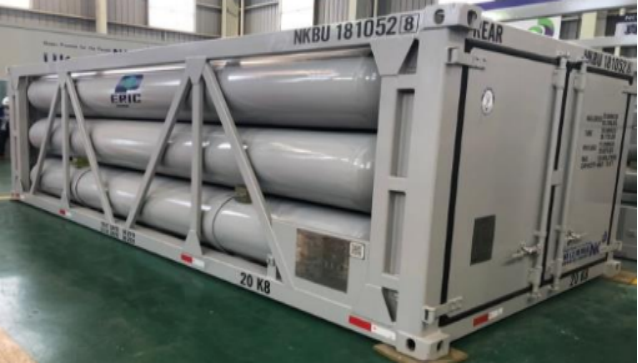

1、High pressure liquefied gas tube bundle container (MEGC)

Focus on storing and transporting high-purity gas to ensure high purity of gas.

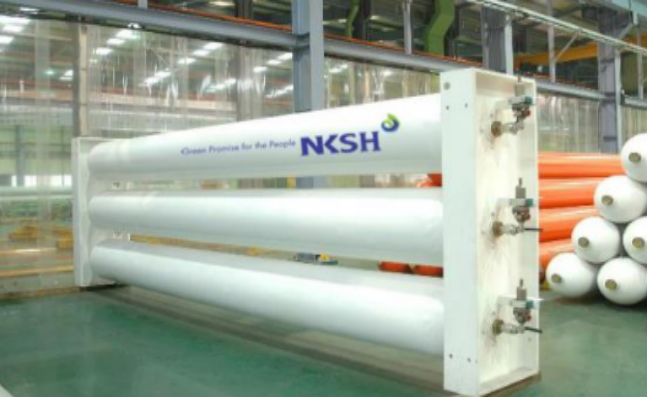

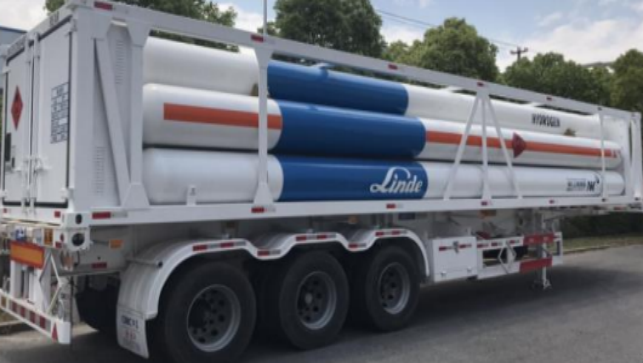

2、Compressed gas tube bundle container

Used for storing and transporting industrial gases, with large capacity and high efficiency.

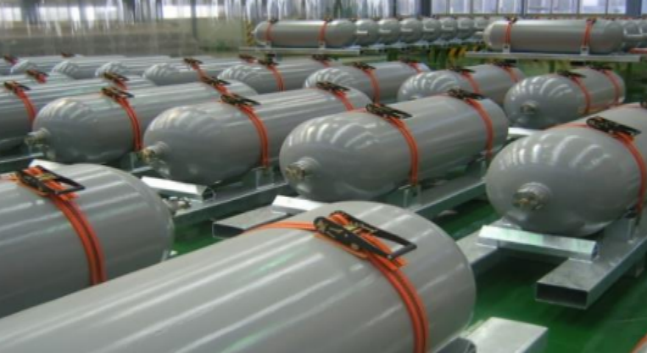

3、Y-TON high-purity high-pressure gas cylinder

Focus on the storage and transportation of high-purity gases, suitable for short-distance, multi-frequency and small-quantity storage and

 transportation.

4、ASME gas cylinder group

Used for storing and transporting industrial gases, with large capacity and high efficiency.

03 Doosan Fuel Cell

DOOSAN (Doosan Fuel Cell Co., Ltd.) is the world's leading supplier of hydrogen fuel cell solutions. Doosan Group is a company with a history of 128 years and continuous changes. Doosan fuel cell has 60 years of technical experience and patents. It is a leading company in the world with PAFC, PEMFC and SOFC technologies, and the installed capacity of distributed power generation of hydrogen fuel cells is among the highest in the world.

main products

04 iONE Co., Ltd.

IONE Co., Ltd. has a complete set of technical solutions from equipment concept to design, manufacturing, installation, operation and testing, and is committed to creating new technologies and values and growing together with customers.

main products

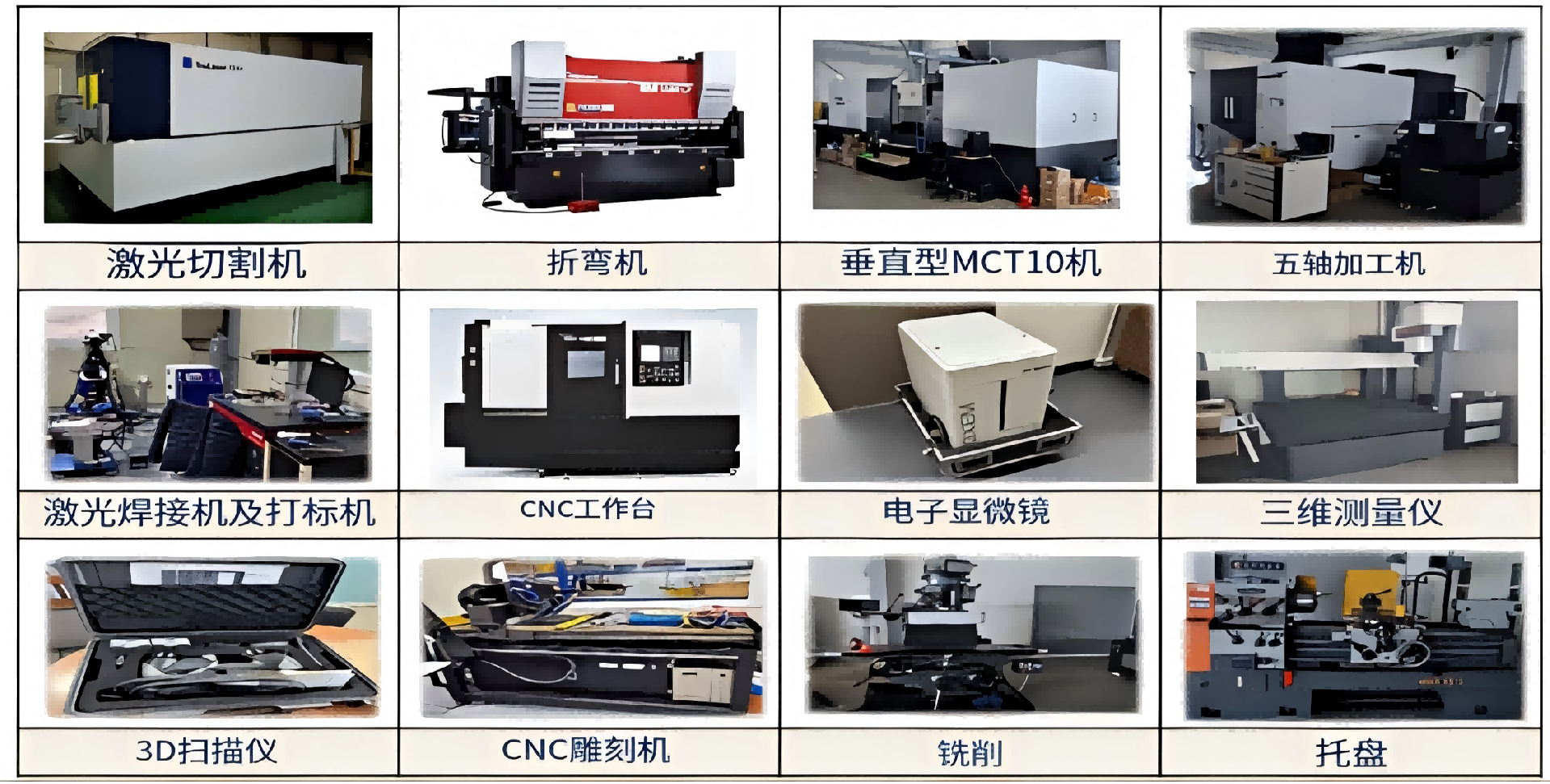

1、 Processing equipment and measuring equipment-owned and commissioned operating equipment.

2. Manufacture of fuel cell parts and modules

3、hydrogen fuel cell experimental equipment

The equipment used to evaluate the electrochemical performance and durability of the stack, as well as the experimental measurement equipment related to fuel cells, were developed and supplied to many fuel cell enterprises.

05 SENTECH ENG

SENTECH ENG (Senteck Engineering Co., Ltd.) was established in 2007, and its main products are sensors, instruments, semiconductor devices and electronic components. Provide high-level technical force and high-quality products at reasonable prices. By building a systematic manufacturing process, self-made processed products, full inspection, etc., we can provide customers with an amazing shortest delivery time.

main products

※Temperature: thermocouple, RTD, bimetal thermometer, temperature transmitter

※Humidity: Thermohygrometer, humidity sensor

※Pressure: pressure gauge, pressure transmitter

※Heater: fine speed electric heating tube, single head electric heating tube, mica heater, polyimide heater

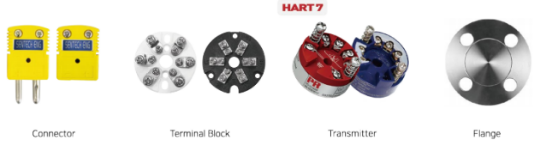

※Others: thermowell, compensation conductor, indicator

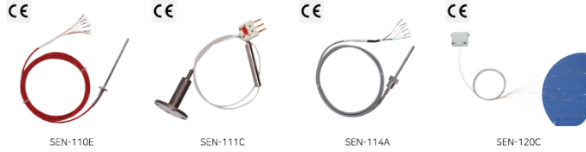

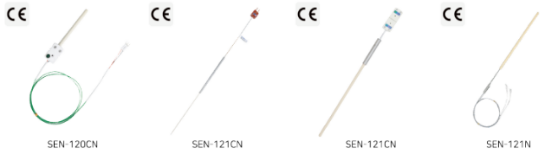

temperature sensor

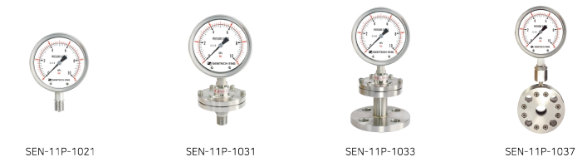

Pressure gauge & thermocouple sleeve

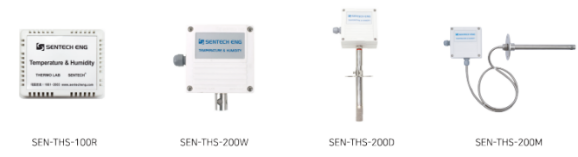

Bimetal-humidity sensor

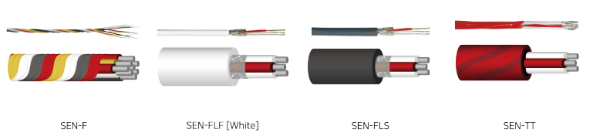

Conductor & Accessories

06 TWOYGEN

TWOYGEN has always adhered to the top performance and quality in various industrial fields such as shipbuilding, factories and power generation facilities, and opened up a brand-new future for the energy industry.

main products

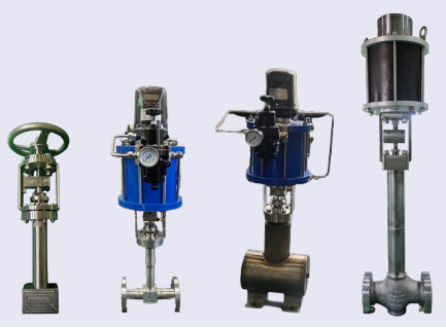

1、Cryogenic Valve

The design, manufacture and performance certification of cryogenic valves for liquefied natural gas (LNG), liquid nitrogen (LN2) and other ultra-cryogenic gases (working temperature as low as -196℃) all meet international technical specifications and standards, such as ASME B16.34, ISO 21011(BS 6364), KGS AA335 and ISO 9001. According to user's requirements, these valves can be used under the pressure of up to 350bar.

2、 Special Valve for Gas

Valves used for liquefied petroleum gas (LPG), natural gas (NG), hydrogen (H2), methanol and ammonia are designed, manufactured and certified according to international technical specifications and standards, such as ASME B16.34, ISO 5208, API 598, KGS AA317 and ISO 9001. It is worth noting that the hydrogen (H2) valve can be used at a pressure of up to 1,000bar.

3、Cryogenic valve for liquid hydrogen

The design, manufacture and performance certification of valves used for low-temperature liquid hydrogen (up to-253 C) meet international technical specifications and standards, such as ASME B16.34, ISO 21011(BS 6364), KGS AA335, ISO 9001 and patented technology (KR10-2509774). These valves are welded-free integrated valve body and vacuum insulation design.

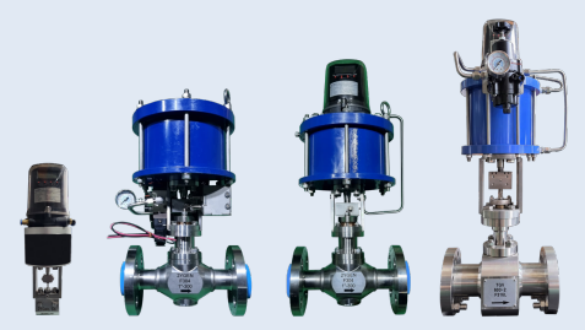

4、Control valve for high temp. & high pr.

Steam and high temperature and high pressure control valves are designed, manufactured and certified according to international technical specifications and standards such as ASME B16.24, KEPIC MGG, API 598, ISO 5208 and ISO 9001. According to user's requirements, these valves can be used at a temperature of up to 600°C and a pressure of 500 bar.

5、Back Wash Filter (backwash filter)

BW filter is a backwashing filter device, which is used to remove impurities in fluid. The product is designed and manufactured according to ASME Section III or VIII, API 598, ISO 9001 and other international technical specifications and standards, and has passed performance certification. The filter has automatic cleaning function during normal operation, so it can be used in seawater and fresh water facilities.

07 HyIS ONE

HyIS ONE was founded in 2023, and the agency is located in Jeju Island, South Korea. Mainly committed to the construction of hydrogen refueling stations. We have experience in the construction of several hydrogen refueling stations and diversified solutions.

main products

2、Large storage of hydrogen energy (1.5 tons)-container stacking

3、hydrogen loading and unloading-improve the operating efficiency

of tubular trailer.

4、Ensure large capacity and compressor operation-configuration

08 KCERACELL

As a company specializing in solid oxide fuel cells (SOFC) and solid oxide electrolytic cells (SOEC), KCERACELL was established in March 2010 with the financial support provided by the government to encourage the renewable energy industry. Solid oxide fuel cell (SOFC) is one of the most promising energy fields to solve environmental problems. We always focus on the use of core materials and direct use of natural/biogas to develop high-power medium-temperature solid oxide fuel cells (SOFC) and make every effort to promote the development of green energy in the future.

main products

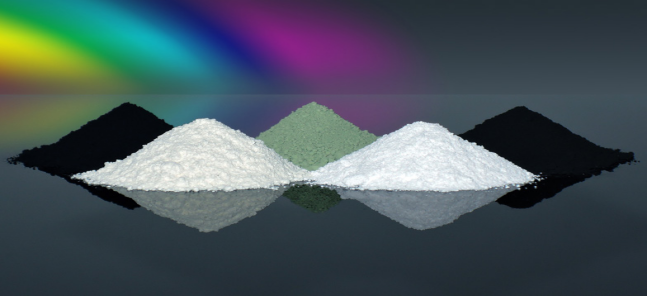

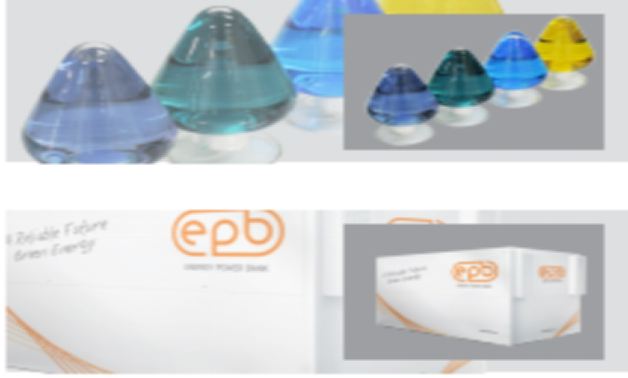

1、Core materials of SOFC: develop new materials and ideal synthetic batteries. Various independently developed materials are applied to solid oxide fuel cells (SOFC) and solid oxide electrolytic cells (SOEC), and are evaluated through continuous research and development to promote the commercialization of SOFC/SOEC.

1) Cathode Materials

2) Electrolyte Materials

3) Anode Materials as anode material

4) Spinel Materials

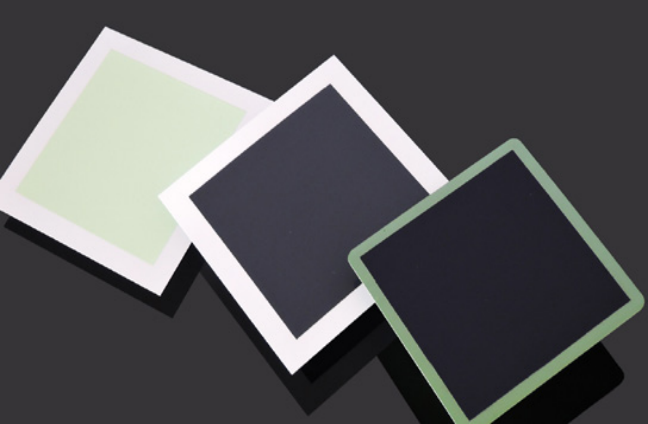

2、SOFC flat battery

Competitive price achieved by using Kceracell materials.

High power is realized by a new patented material (6Yb4ScSZ, GYBC).

The strength and redox stability of the battery are improved by using thick film

 electrolyte and anode support of honeycomb structure frame.

Improve battery reliability through stacked application evaluation.

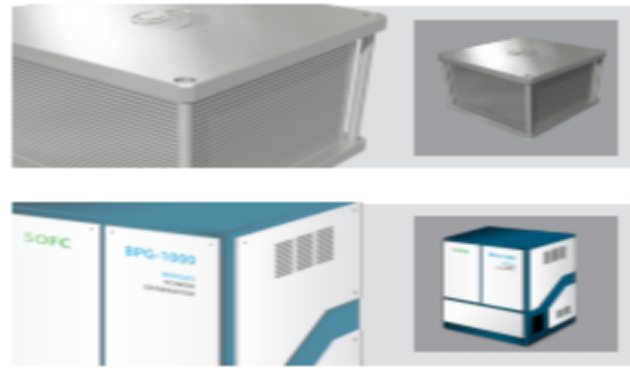

3、Oxide fuel cell stack/system

4、ESS（VRFB：Vanadium Redox Flow Battery）

09 Pureuntek Energy

Since its establishment, Pureuntek Energ has accumulated more than ten years of technical development experience in the field of hydrogen energy production, storage, transportation, power generation and safety certification. Provide optimized solutions for system design and evaluation, and provide customers with high-quality systems. Not only for the Korean domestic market, but also for the United States, Japan, China and other major markets to supply technology and products.

main products

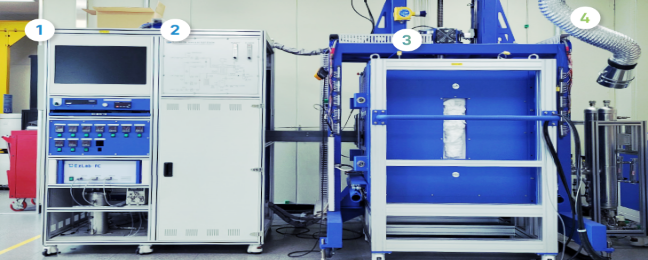

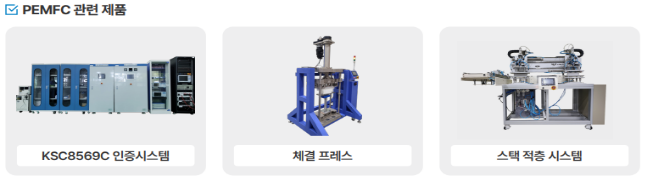

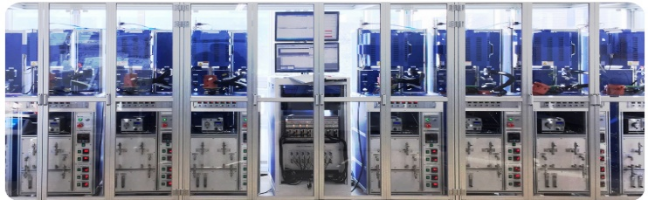

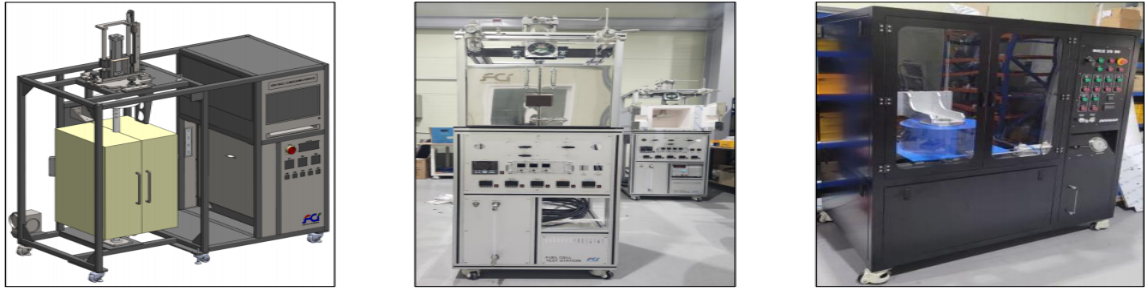

1、PEMFC TEST STATION

Fuel cell performance and characteristic evaluation system

Evaluation option of KSC8569C certification for PEMFC for power generation.

Battery integration scheme for powertrain development

Structure capable of integrated operation with hydrogen production system

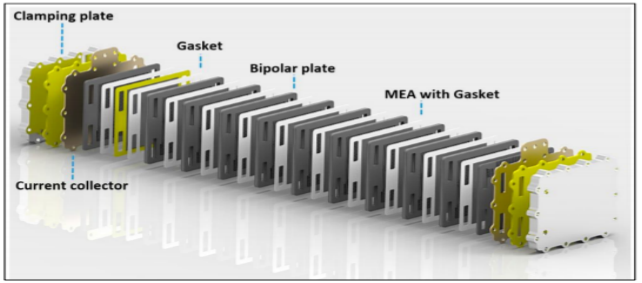

2、Manufacturing process, components and stack development of PEMFC stack

General partition board, stacked parts and manufacturing equipment

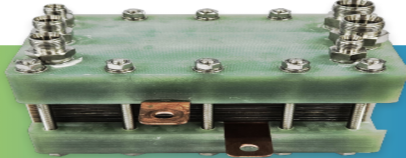

Small fuel cell power pack: 1kW stack based on PEMFC can be manufactured

Performance evaluation/verification of fuel cell components: short stacks customized

 by customers can be manufactured

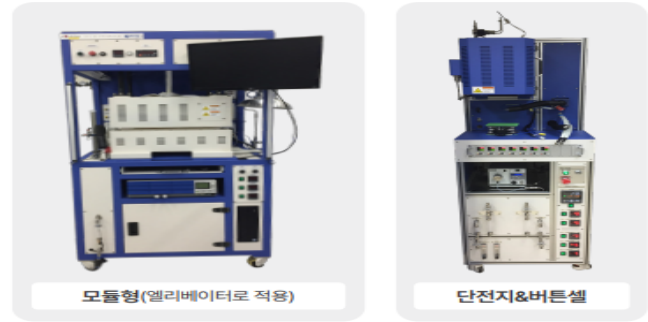

3、SOFC & EC TEST STATION

Fuel cell performance and characteristic evaluation system

Configuration supporting FC and EC testing

Structure capable of installing modifier and HOTBOX auxiliary equipment

Supports a variety of fuels from ammonia to methanol.

4、 ammonia reformer evaluation operation system

Structure capable of installing electric heater and gas burner

Configurations that support up to 80bar operation

Configuration to support the operation of integrated systems such as gasifier

 and afterburner

Support ammonia adsorption and removal, large-capacity container configuration

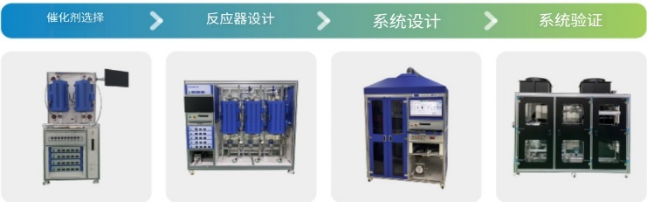

5、Catalyst evaluation and production process development system

Applications: PSA, TSA, solid oxide fuel cell (SOFC) and electrochemistry (EC),

liquid organic

hydrogen carrier (LOHC), electronic fuel (e-Fuel)NH3, CH4, methanol cracking

and conversion catalyst
